DMC7300 Series
Disc Mower Conditioners
24 Months / Unlimited Hours Warranty
DMC7300 Series
Disc Mower Conditioners
The optimum blend of precision and ease-of-use. The DMC7300 series front mounted mower conditioner from Kubota brings new options to its line of mower conditioners. The DMC7300 series feature a host of new improvements to bring operator comfort to a higher level. The DMC7300 is available in 10’5” (3.18m) and 11’6” (3.5m) working width in either tine or roller configurations.
24 Months / Unlimited Hours Warranty
Overview
Features
Three-bladed discs
With three blades per disc, Kubota mowers provide a 50% higher cutting frequency compared to conventional solutions. This means a third less load per blade,...

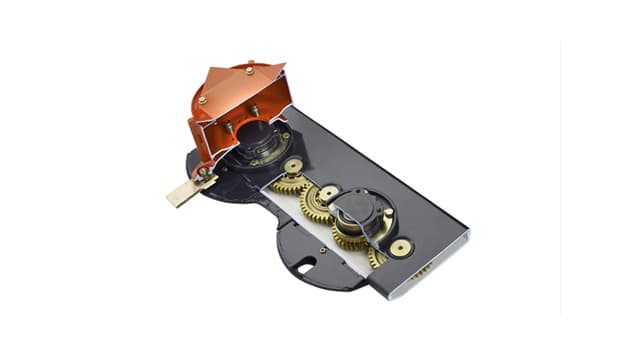

Fully welded cutterbar
The Kubota cutterbar’s high cooling and lubrication efficiency oil pump system reduces wear and tear. The fully welded cutterbar with overlapping C-channels makes for a...

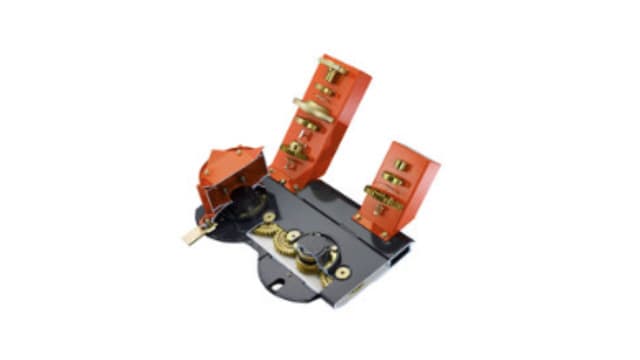

Shear Protection
Shear protection of gear wheels and the drive system designed to break in case or overload or major contact.

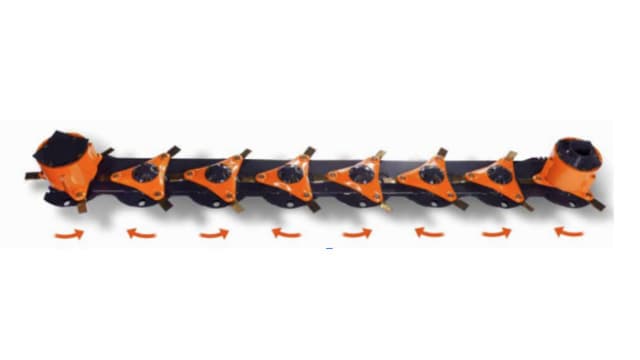

Counter-rotating discs
An even number of counter-rotating discs provides generous overlap between all discs, high lift, and better crop throughput.

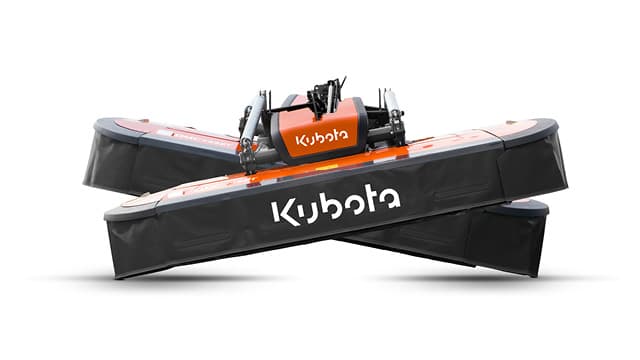

ProLink Transverse Adaptation
The suspension design allows a transverse adaptation of 24 degrees along with a total vertical working range of 2’2” (670 mm). If an obstacle is...

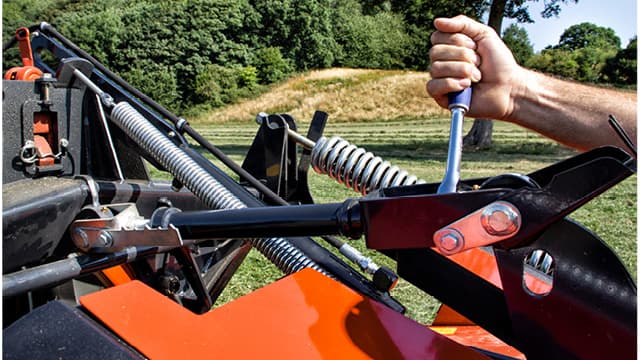

Integrated Stubble Height Adjustment
Stubble height adjustment is conveniently integrated directly into the suspension linkage. There is no need to tilt the A-frame of the tractor. 40 mm skid...

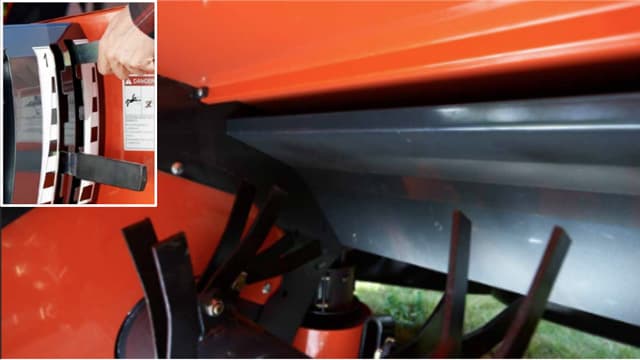

Independent Tine Conditioner Hood Adjustment
The dual adjustment of the conditioner hood meets the exacting demands of various crop conditions in the field. Both front and rear of the conditioner...
Improved Operator Experience
Overall design provides an unobstructed view of the entire mowing and transport area. Folding FlexProtect guards are easily placed into transport mode. Optional hydraulic folding...

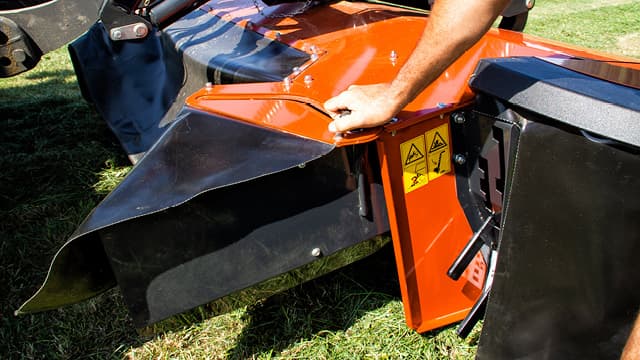

Telescoping Deflector Plates
Deflector plates on both sides stay neatly tucked away for wide swath or can be easily exteneded and telescoped to collect crop into a more...
NonStop Breakaway System
When object is encountered, the cutting unit will move up and back, automatically returning to original working position. 100% protection across full working width. No...
Full-width Rubber Roller Conditioning
Roller conditioning provides gentle, yet effective handling of fragile crop such as alfalfa or clover. The adjustable spring-controlled pressure exerted between the two rollers guarantees...
Full-width Semi Swing Tine Conditioning
The Kubota SemiSwing tine conditioner with adjustable conditioning hood is highly adaptable to varying crop types. During operation tines will stay in a fixed position,...
Models
DMC7336T
Tractor Front Mounted
11'6" (3.5m)
SemiSwing Tine
80.0 HP
1000 RPM
DMC7336R
Tractor Front Mounted
11'6" (3.5m)
Rubber Roller
80.0 HP
1000 RPM
DMC7332T
Tractor Front Mounted
10'6" (3.2m)
SemiSwing Tine
75.0 HP
1000 RPM
DMC7332R
Tractor Front Mounted
10'6" (3.2m)
Rubber Roller
75.0 HP
1000 RPM
